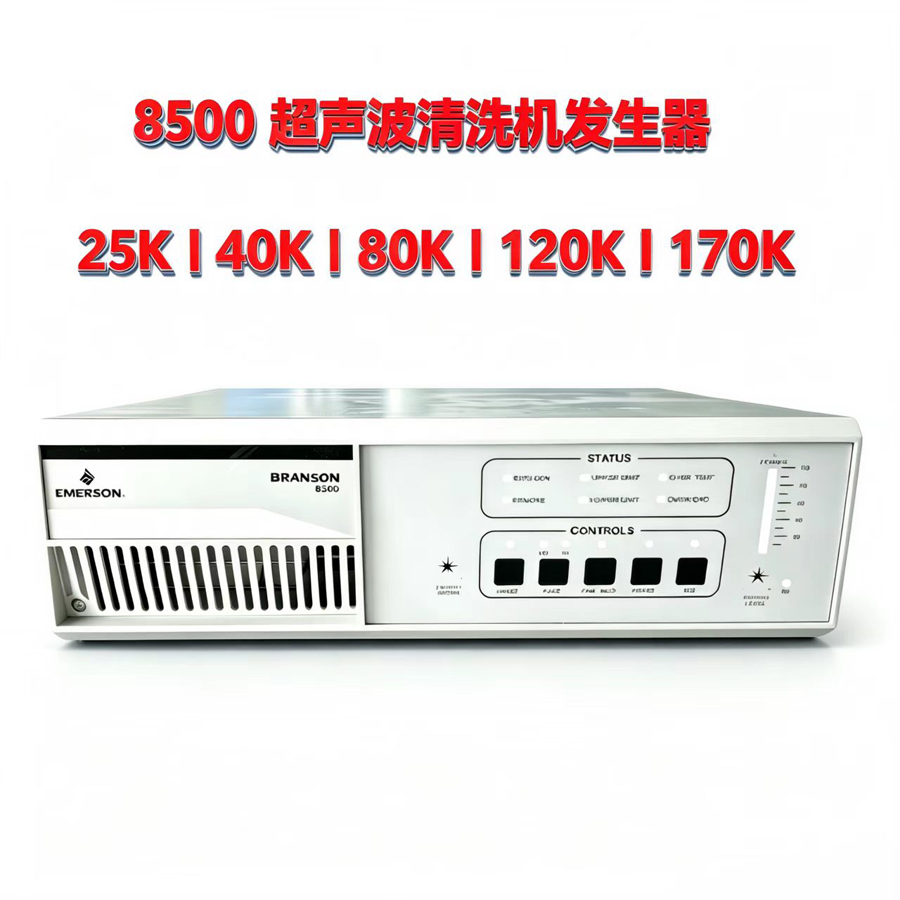

The 8500 series of high performance ultrasonic generators can meet the requirements of any precision cleaning industry.
Whether used separately with a cleaning tank or in conjunction with a large cleaning system,
They all provide fast, uniform and high quality cleaning results. The 8500 series generators produced by Benson come in
two categories with five frequency options, which are
:8500(25kHz、40kHz)，8500HF(80kHz、120kHz、170kHz)。
Main features and advantages
Power supply voltage / load regulation
To compensate for changes in temperature and liquid level in the cleaning tank caused by changes in local voltage and
load;The 8500 can limit the range of these changes to ± 3% to ensure
Get consistent cleaning results.
Power can be adjusted
The airification intensity can be kept constant in the 0-100% range to meet the power requirements when cleaning
different products; The selected current power can be displayed via the LED.
The optional frequency scanning can eliminate stationary waves and improve the distribution of ultrasound within the
cleaning tank by selecting the frequency wide and the scanning rate.
Automatic FM tuning
The optimum operating frequency can be maintained during cleaning. The 8500 can be made according to changes
in the liquid environment in the cleaning tank (e.g. temperature, level height, load in the tank, etc.).
Adjust accordingly to ensure the best cleaning effect.
Power modulation mode
One of BHP's patented products can generate four times the peak power in a cleaning fluid. This function can help
remove stubborn dirt or enhance semi-water solution and hydrocarbons
The effect of vacuation in solution.
Two input / output ports
The working parameters can be remotely controlled. One port is used for open / shut control only; Another enables
complete remote control of the generator for automated operations.
Or a companion PLC to record statistical information about ultrasonic performance.
