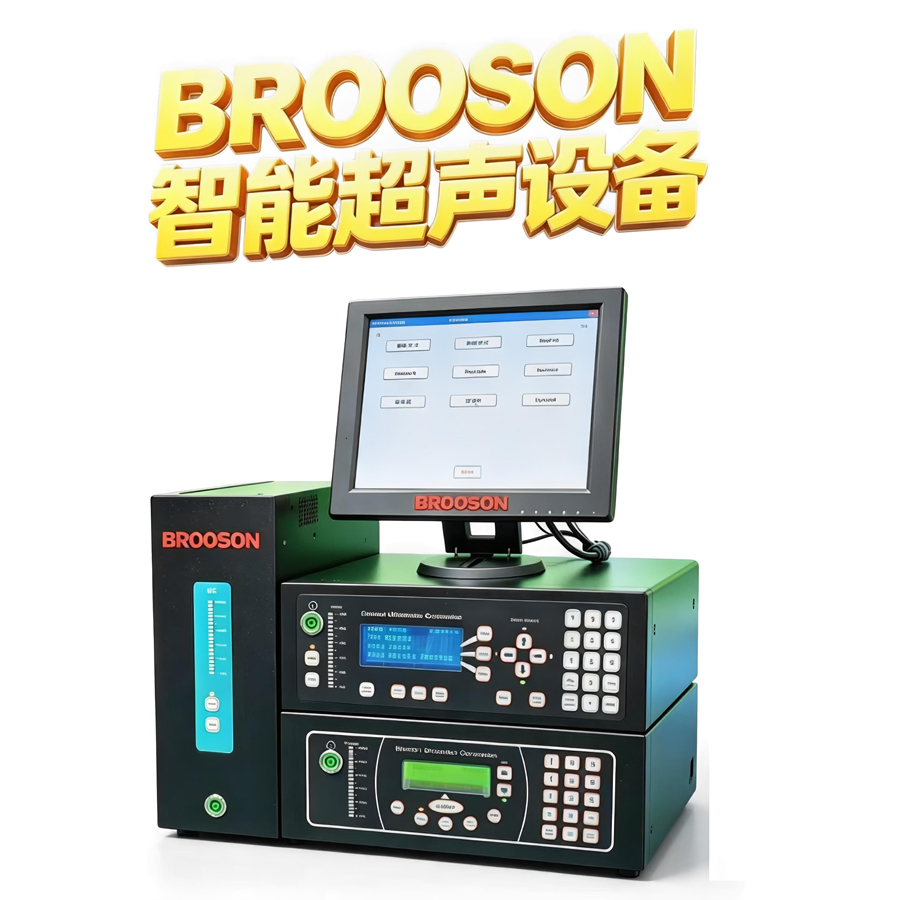

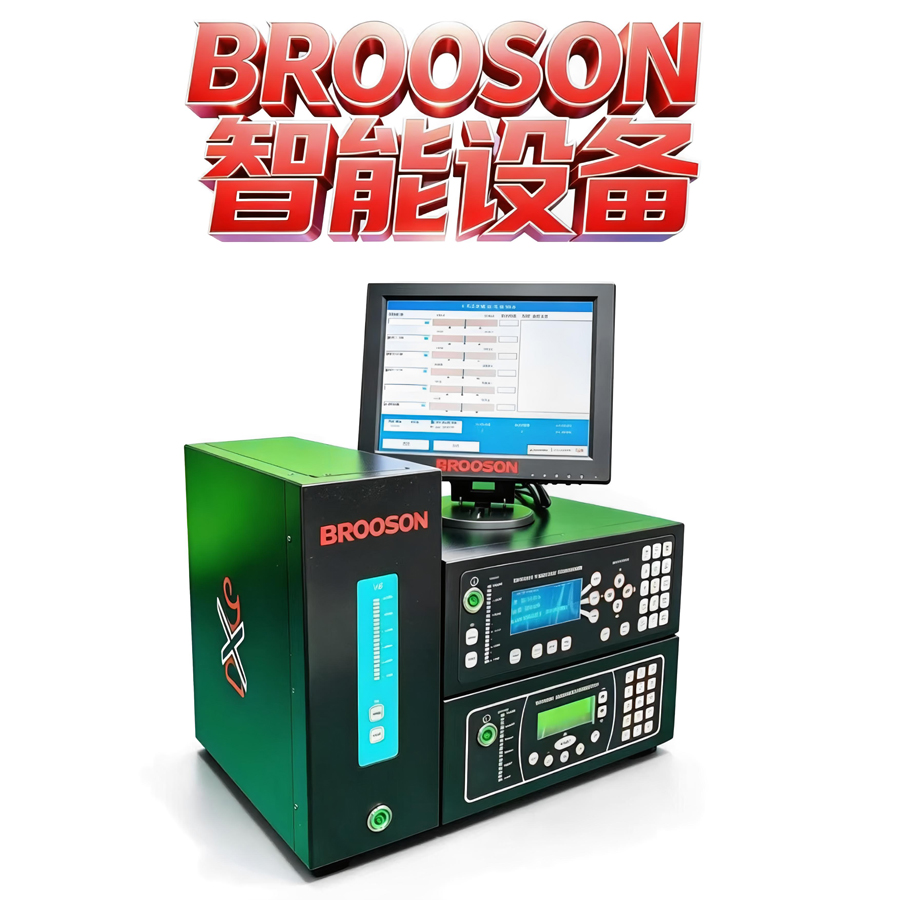

High power, high quality, high amplitude, high efficiency, high durability and stability Ultrasonic generator system
High performance process control and stable and reliable power
DCXE platform
This model comes with digital display and parameter inspection functions, and offers a variety of welding modes
such as time, energy, peak power, ground detection and so on.
Provides 12 sets of named preset parameters in process control for easy setup and switching between applications:
and comes with hand-picking mode to set itself
Time or energy output functions.
De-t
Upgrade the standard desktop or wall-mounted 12-inch / 15-inch VGA touch screen; Available in a variety of operating
language options, including English, French, German
Italian, Spanish, Japanese, Korean Traditional and Simplified Chinese. Graph depicts a graph with the stack; PMC
power matching curve;
USB interface: used to collect data, connect the mouse, printer, etc. And can provide MES system and two dimensional
code tracer production.
The functions are the same as those of the previous models.
D-dt
External standard desktop or wall-mounted 12 inch / 15 inch VGA touch screen; Available in a variety of operating
language options, including English, French, German,
Italian, Spanish, Japanese, Korean Traditional and Simplified Chinese. The system has diagrams depicting the stack;
And PMC Power
Match curve; And USB interface: used to collect data, connect the mouse, printer, etc. And provides time, energy,
peak power,
A variety of welding modes such as ground detection, relative distance, absolute distance, and self-contained pistol
modes can set their own time or energy output functions.
There are 16 sets of named preset parameters, and this generator must be measured with a high separation rate linear
encoder with a depth connection configuration
Up to 2.5um rack matching can be used. The pre-triggered modes that can be selected are selected automatically
or on time. Implement a shutdown
Key site detection and precise welding. And can provide MES system and two dimensional code tracing machine production
The ultrasonic conversion efficiency of Beacon's circuit system is as high as 95%, which is twice the conversion
efficiencies of 50% of domestic circuits. Maximum stable output amplitude 120 um.
High power - high amplitude - high quality - high efficiency high speed welding industry is not two of the only“VE for on'
