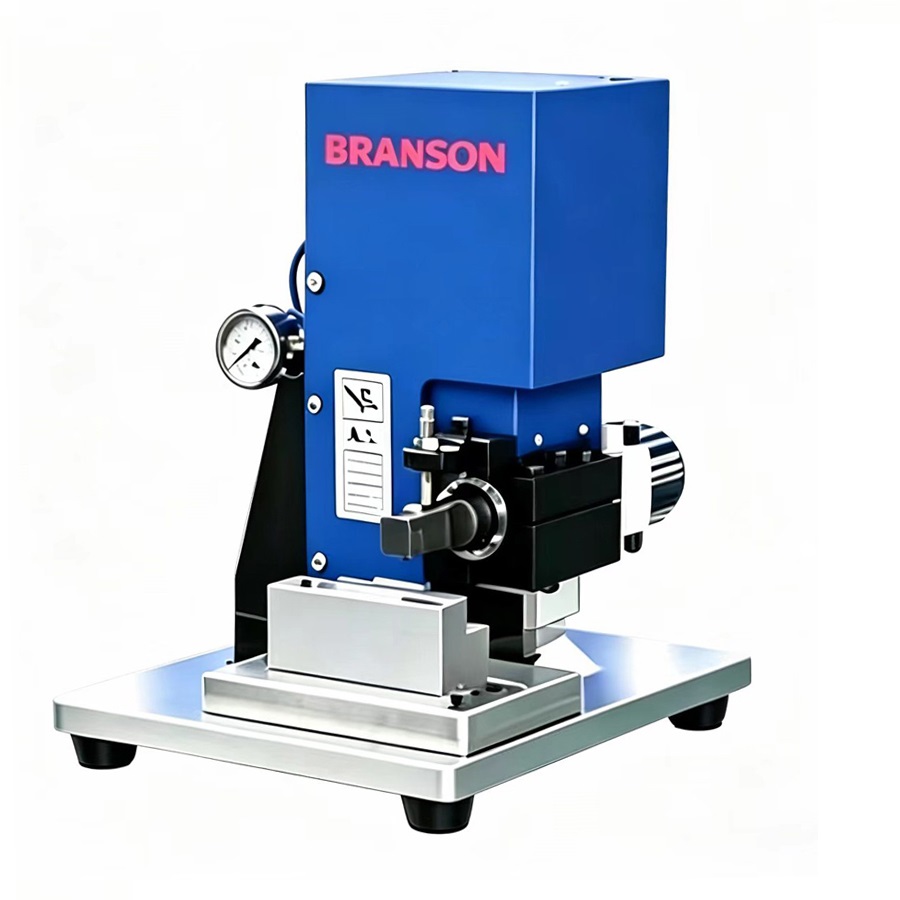

BWE | Ultrasonic battery welding machine
Precise roller bearing slides ensure smooth operation of the system and great accuracy
Power supply voltage / load regulation
Patented closed circuit amplitude control function
Automatically modulates and stores
Automatic frequency modulation in the range of 39.9 kHz ± 1000 Hz using 40 kHz welding head
Storage frequency per welding
Frequency automatic search
Automatically measure and store the operating frequency of an ultrasonic triad
Peak power limit
When actual power > peak power limit, stop ultrasonic / welding work and alarm
Set range of peak power limits: 10% -100%
The system stores the last peak power and updates the next peak power value
System Protection Monitor
Suitable for 1) too large frequency shift 2) too high voltage 3) too large current
4) The temperature is too high 5) The power is too high
System operating mode
There are three models:
1. Welding cycle mode: automation control of welding process
Parameters for automation control for each welding machine cycle are pre-set
2. The solder descent mode: no ultrasonic energy is emitted when the solder drops
Calibration for solder molds
3. Ultrasonic test mode: When the welding frame is still, it also produces ultrasonic waves
For welding head parameter testing frequency (kHz) 4040
Control Mode Energy / Time Energy / time
Output power 8001500 Rack 40 MA-B40MAB
Transducer 4 TRCS-40S Rack Cylinder Diameter (mm) 5050
Frontal fixed power 800 W 1500W
Input Power 220 VAC ± 10%, 50 / 60Hz, 6A 10A
Frequency 40 kHz Ambient temperature 5-50C
Maximum pressure 0.7MPa Maximum stroke 20mm Maximum welding speed 80 times / min
(Minimum delay time and welding time, 10 mm stroke length, 0.35 MPa)
Weight (rack + base) 22.5 kg
